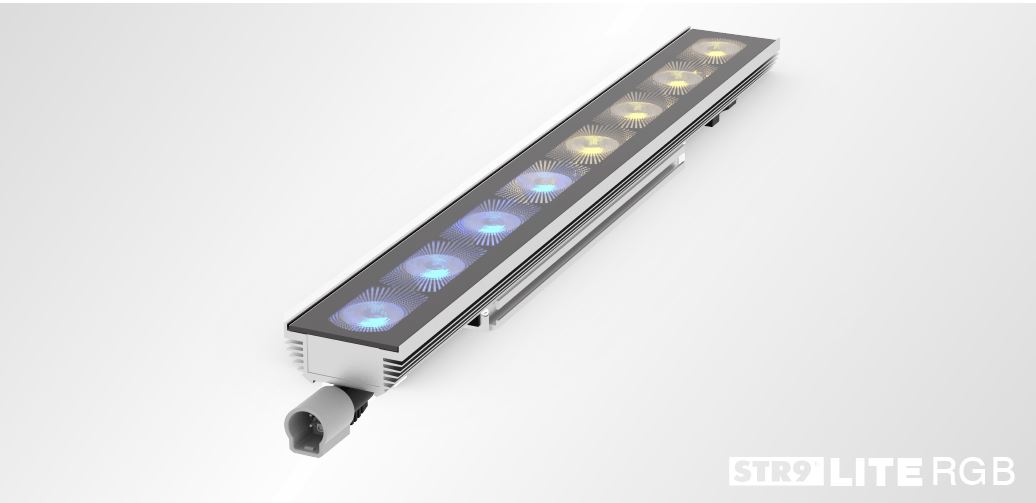

GVA Lighting STR9 Lite RGB

High performance, high power, color changing, linear surface mount LED luminaire designed for interior architectural lighting applications.



  • Up to 1883 delivered lumens/meter (565 lumens/foot)
  • Power Consumption: typical 20W per 300mm/1ft
  • DMX control through GVA’s power-data equipment
  • Color matched with FL100™ RGBW-IM
  • Compact size, only 56.1mm (2.21in) high x 72.0mm (2.83in) wide
  • Five standard nominal lengths: 300, 600, 900, 1200 and 1500mm or 1, 2, 3, 4 and 5ft
  • IP50 rated simplified indoor construction for reduced fixture cost
  • Optically clear tempered glass lens: no yellowing over time



  • Power Source: Extra Low Voltage (ELV) or INFINITY (INF) using remote power supplies
  • Power Options: 15W or 20W per 300mm (1ft)

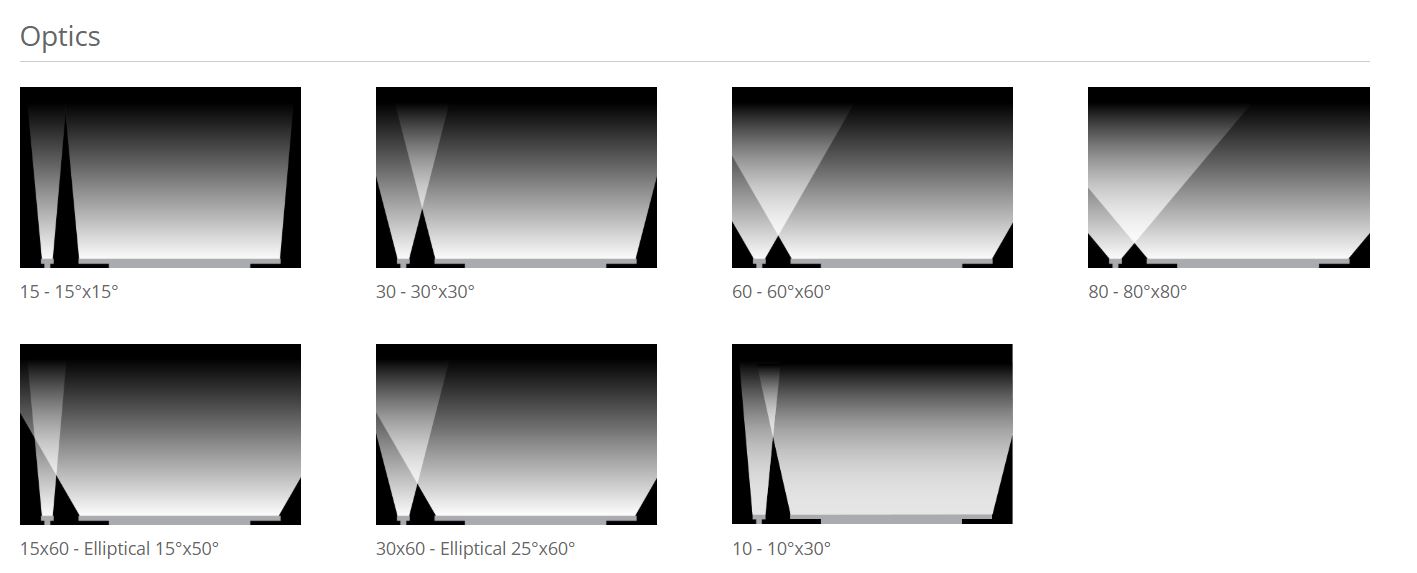

  • Beam Distribution: Range of round and elliptical beam angles available
  • Body Color: Clear matte, black matte anodized or custom color


  • Static colors: Red, Green, Blue
  • High Intensity option available, suitable for long throw applications


See specifications for more information or click here
