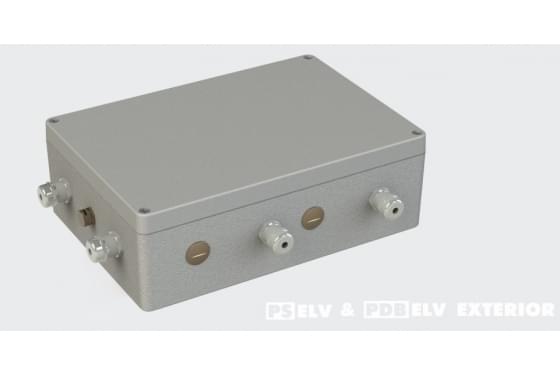

GVA Lighting PS-ELV & PDB-ELV Outdoor

ELV Power and Data Supplies for Exterior LED luminaires.



PS-ELV Outdoor

  • Output: 12V, 24V, 48V or 60V DC
  • Input: 120~277V AC
  • Power: 60W, 100W, 240W, 320W, 480W or 640W
  • Cast aluminum enclosure
  • Grey powder coated finish
  • Outdoor use: IP66 Rated
  • Passive cooling
  • Projected lifetime: 50,000hrs @ 30°C
  • Operating temperature: -40°C to +40°C, -40°F to 104°F
  • Terminal blocks included for easy connections
  • Cable glands provided for water-tight connections


PDB-ELV Outdoor

  • Output: 12V, 24V, 48V or 60V DC
  • Input: 120~277V AC
  • Power: 60W, 100W, 240W, 320W, 480W or 640W
  • Control Input: DMX, DALI, 0~10V or PB
  • Control Output: DMX, ZH, DIM or PWR
  • Cast aluminum enclosure
  • Grey powder coated finish
  • Outdoor use: IP66 Rated
  • Passive cooling
  • Projected lifetime: 50,000hrs @ 30°C
  • Operating temperature: -40°C to +40°C, -40°F to 104°F
  • Terminal blocks included for easy connections
  • Cable glands provided for water-tight connections



See specifications for more information or click here
