GVA Lighting IP-SF-3

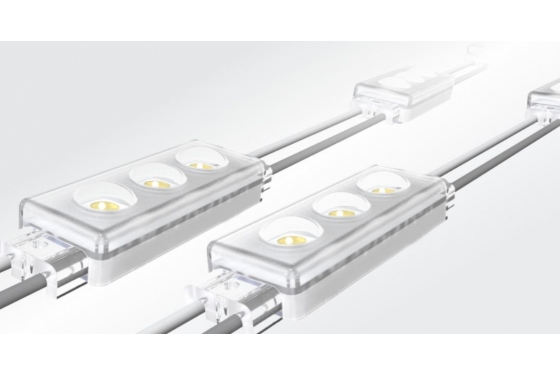

IP-SF™3 is a low voltage, low wattage LED light module offering an energy efficient, reliable and low cost lighting solution for both indoor and outdoor installations. Typical applications include cove and under-cabinet lighting, backlighting and channel letter signs, delineation and any application where moisture or extreme temperatures may occur.
Each module consists of three LEDs available in 6 color temperatures of white as well as Amber, Red, Green and Blue. The modules are completely sealed and IP65 rated for wet locations and can operate in ambient temperatures from -40°C to +50°C.
Each module is only 54mm long, 16mm wide, 9.5mm high and connected to adjacent modules with 70mm jumper wires (max. 150mm center-to-center). The compact size and flexibility of an IPSF-3 assembly affords unlimited installation options. Standard assemblies are sold with 100 modules.
The IP-SF™3 modules can be mounted with the pre-applied Very High Bond (VHB) double sided tape or with screws through the predrilled mounting flanges on each end of the module.
See specifications for more information or click here
