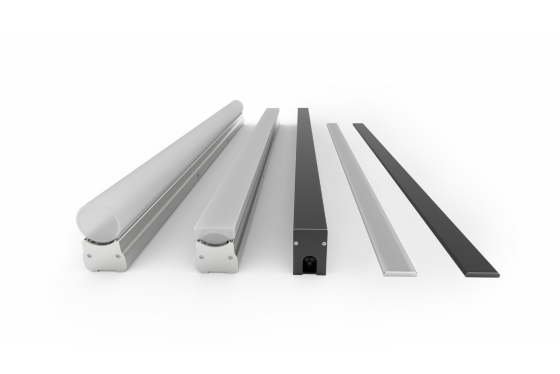

GVA Lighting HL-DL

Direct view architectural delineation LED lighting system. A modular LED lighting system for large scale installations: architectural delineation of skyscrapers, bridges, airports, cove lighting for shopping malls, large offices where long runs are necessary.



  • Up to 7000 cd/m2 luminance on diffuser surface
  • Power consumption: 5W maximum per 300mm/1ft
  • 300mm/1ft modular design for curved or straight sections
  • 16 clusters of LEDs per 300mm/1ft for perfectly uniform diffuser illumination
  • Three different configurations available: RGBW high output LEDs with COLOR-AMP, Monochromatic, and RGB.
  • DMX, DALI or 0~10V control through GVA’s power-data equipment
  • LED modules fully sealed for outdoor use: IP66 rated
  • Diffuser profiles: UV stable and impact resistant PMMA (acrylic), no yellowing over time
  • INFINITY® technology: exceptionally long runs (up to 300m or 1000ft) from a single power source


Available LED Colors:

  • 2200K – 6500K
  • Amber, Green, Red, Blue
  • RGB - RGBW


See specifications for more information of click here for GVA Lighting
