GVA Lighting GORO-W

Wall-mount open frame, adjustable aim downlight for general, accent and spot lighting where high quality of light is essential.

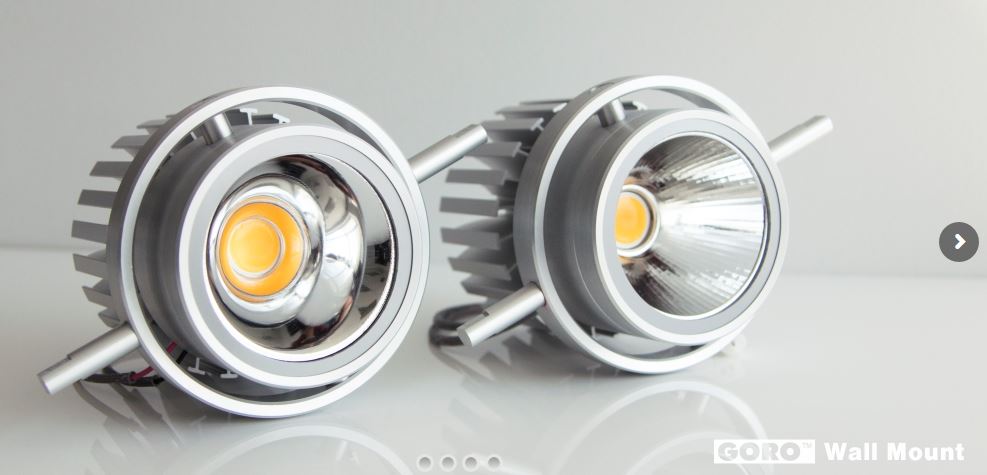

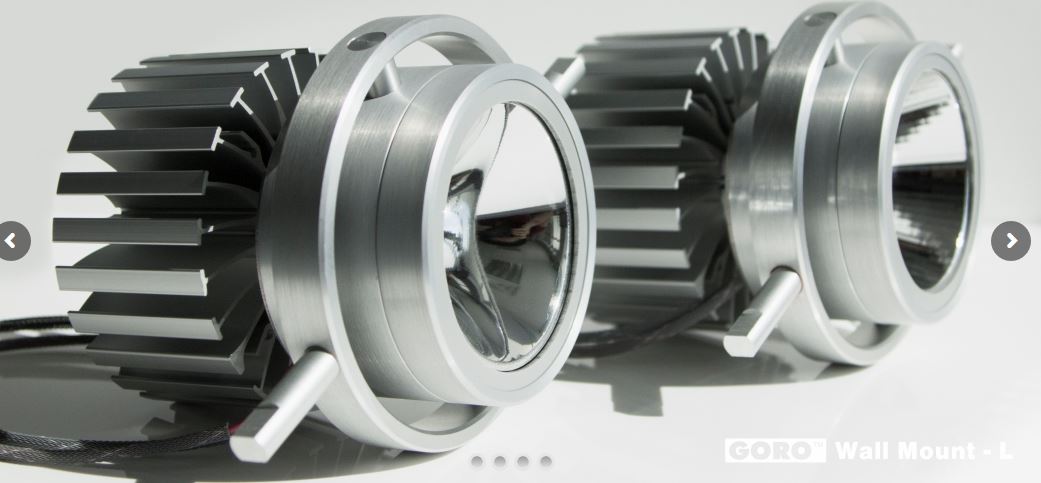

  • Adjustable aim downlight module for general, accent and spot lighting
  • Designed around Xicato LED modules with Corrected Cold Phosphor Technology
  • Outstanding Color Quality: standard 83 CRI, 98 CRI option
  • Vibrant Series option: Gamut Area Index of up to 120
  • Five lumen output options: 700, 1000, 1300, 2000 and 3000lm
  • Four beam angle options: 20°, 40°, 60° and Wall Washing
  • Aiming: ±35° dual-axis adjustable gimbal mechanism
  • Three Standard downlight body colors: Clear Bright Anodized, Clear Matte Anodized and Black Anodized
  • Thermal Design: Passive heat sink guarantees L80 at 50,000hrs.

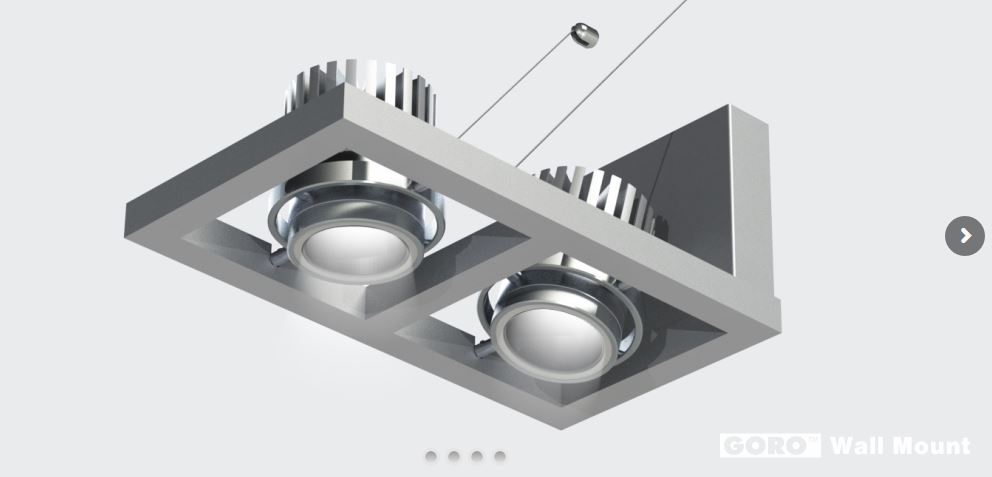

Wall Mount Frame and Power Pack:

  • Seven standard downlight configurations: 1×1, 1×2, 1×3, 1×4, 2×1, 3×1 and 4×1
  • Includes open downlight frame and wall-mount power pack for mounting over junction boxes
  • Downlight frame: 1” aluminum square tube construction
  • Wall-mount power pack: galvanized steel and sheet aluminum construction
  • 3m (10ft) suspension cables provided for floating end of frame


See specifications for more information or click here
