Downloads : technical modifications reserved

Specifications GVA Lighting FL100 RGBW OM (pdf)

GVA Lighting FL100 RGBW OM

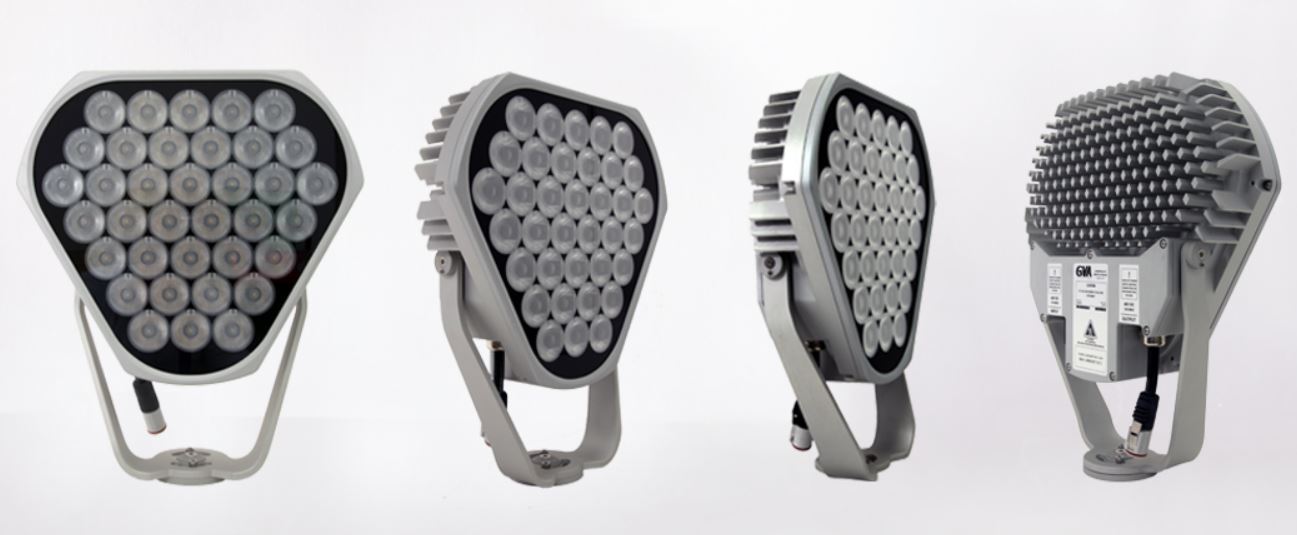

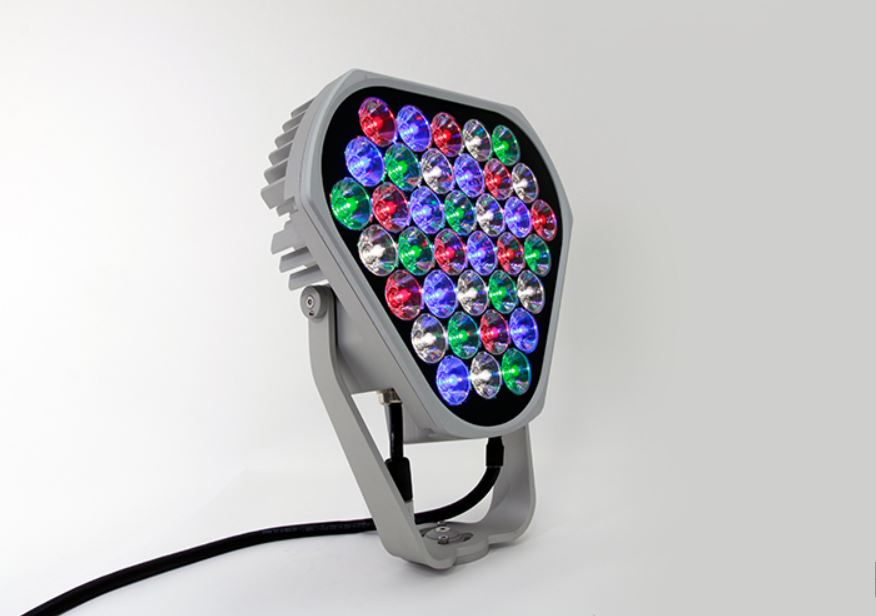

The Most Advanced Architectural Spot and Flood Light. Ideal for applications where powerful color changing light is neccesary

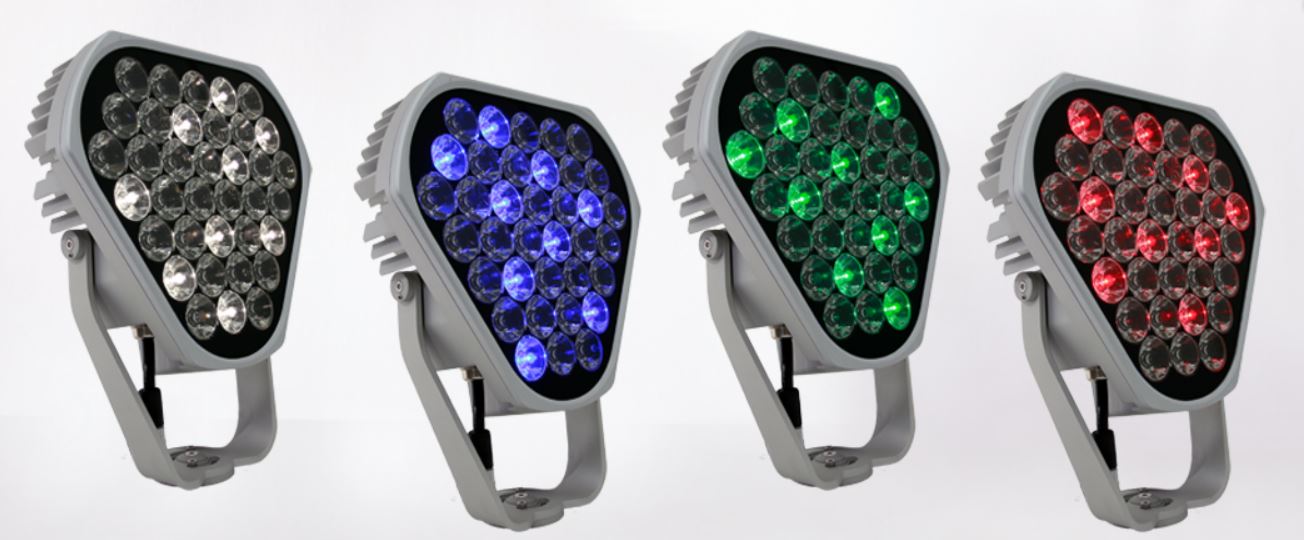

36 LEDs in total, 9 LEDs per color
Custom color combination available



Features

  • Ultra narrow 4.5° beam angle
  • Compact size, only 86mm (3.34in) in depth
  • Weight of only 5kg (11lbs)
  • Advanced thermal design with cutting-edge manufacturing process and materials
  • IP66 sealed body design
  • Meets 3G ANSI C136.31-2010 Vibration standard for Bridge and Overpass Applications
  • Highly adjustable with 360° horizontal rotation and 160° vertical rotation
  • INFINITY® Technology compatible
  • Best color mixing, performance and tightest beam angle
  • Built-in high temperature power supply (AC)
  • Plug-and-play with STR9® luminaires

Options

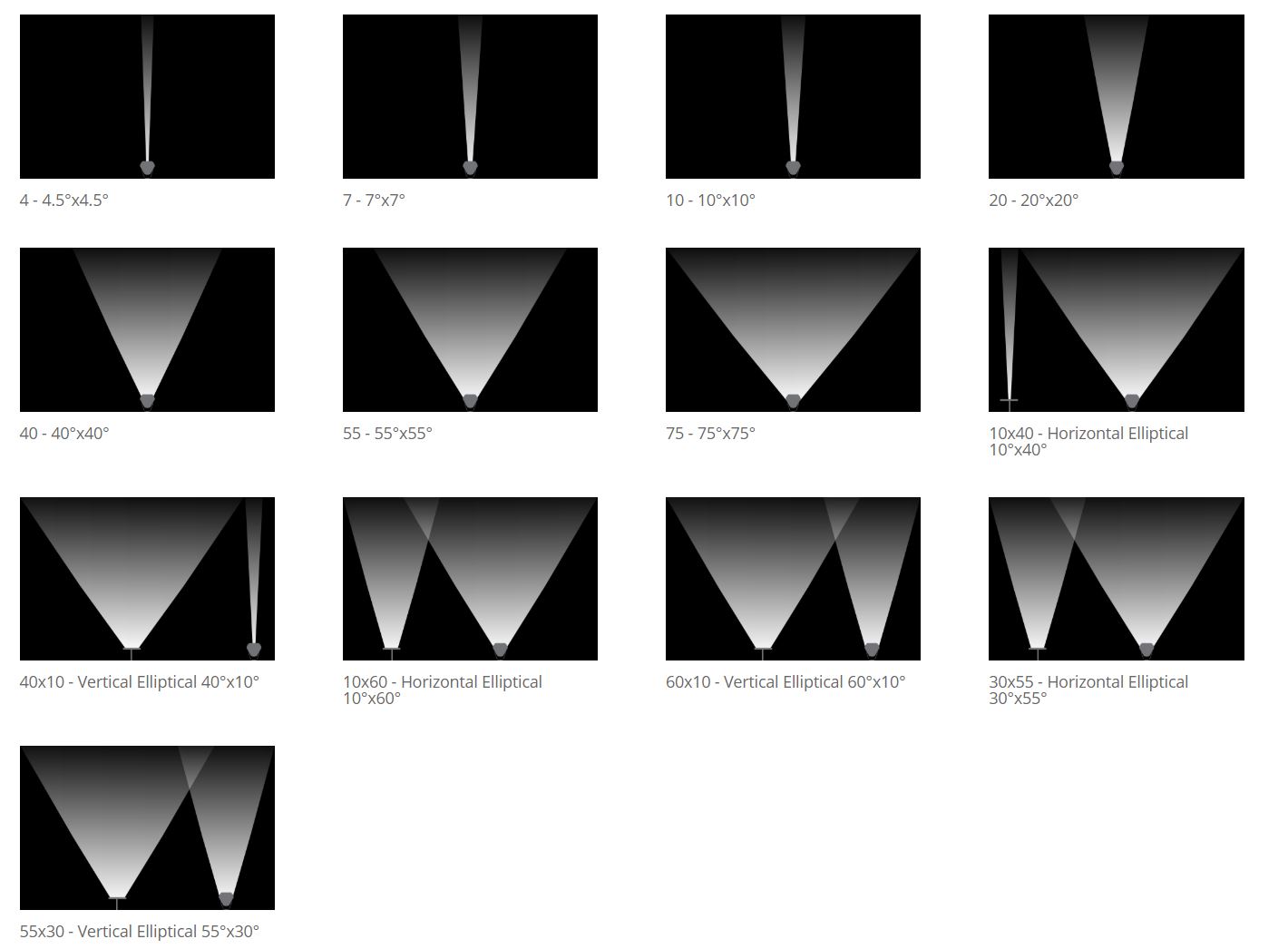

  • Beam angles ranging from 4.5° to 75° with elliptical distribution options
  • Custom color combinations available from LED selection
    of FL100 Monochromatic. Ex: RGBA, RRGB…
  • Optical accessories for glare control

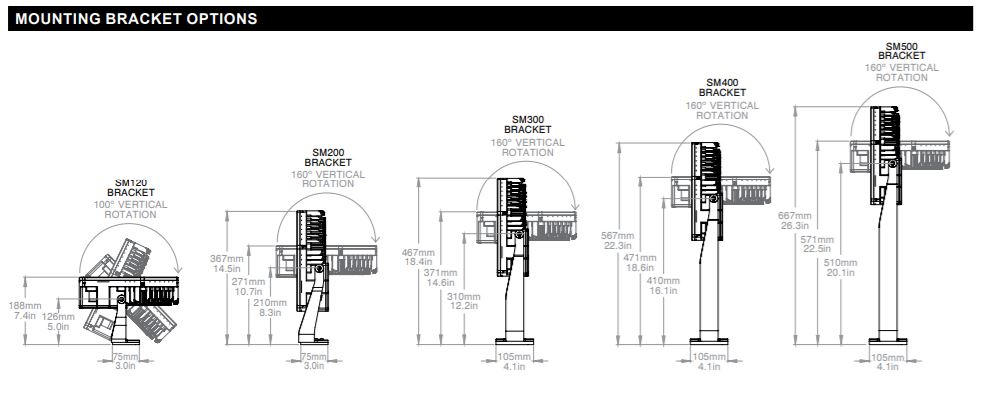

  • Mounting accessories for surface, wall and pole
  • Wide range of anodized body colors
  • ELV (48VDC), INF (380VDC) and AC (85-264VAC) input options.



See specifications for more information or click here
