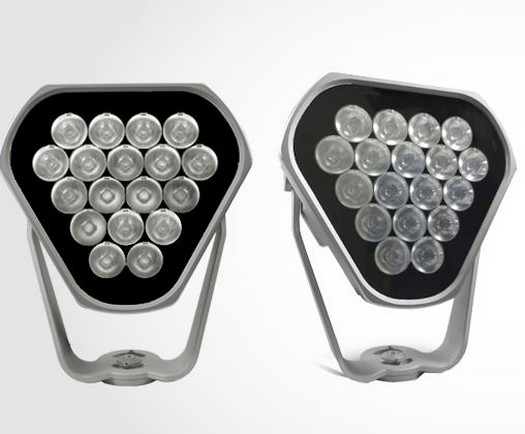

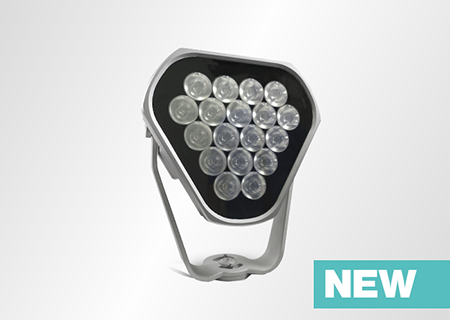

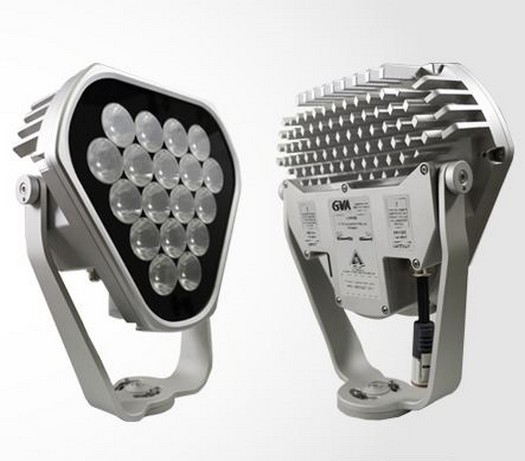

GVA Lighting FL 50 Mono

GVA - Monochromatic Architectural Spot and Floodlight



  • Over 4400 Lumen output
  • Ultra narrow 4.6° beam angle
  • Compact size, only 78mm (3.1in) in depth
  • Weight of only 3kg (6.6lbs)
  • Advanced thermal design with cutting-edge manufacturing process and materials
  • Highly adjustable with 360° horizontal rotation and 160° vertical rotation
  • IP66 sealed body design
  • INFINITY® Technology compatible (INF)
  • Built-in high temperature power supply



  • Wide range of LED colors available
  • Beam angles ranging from 4.5° to 76° with elliptical distribution options
  • Optical accessories for glare control
  • Mounting accessories for surface, wall and pole
  • Wide range of anodized colors
  • ELV (48VDC), INF (380VDC) and AC (85-264VAC) input options.


See specifications for more information or click here
