Downloads : technical modifications reserved

Specifications GVA Lighting STR9 W (pdf)

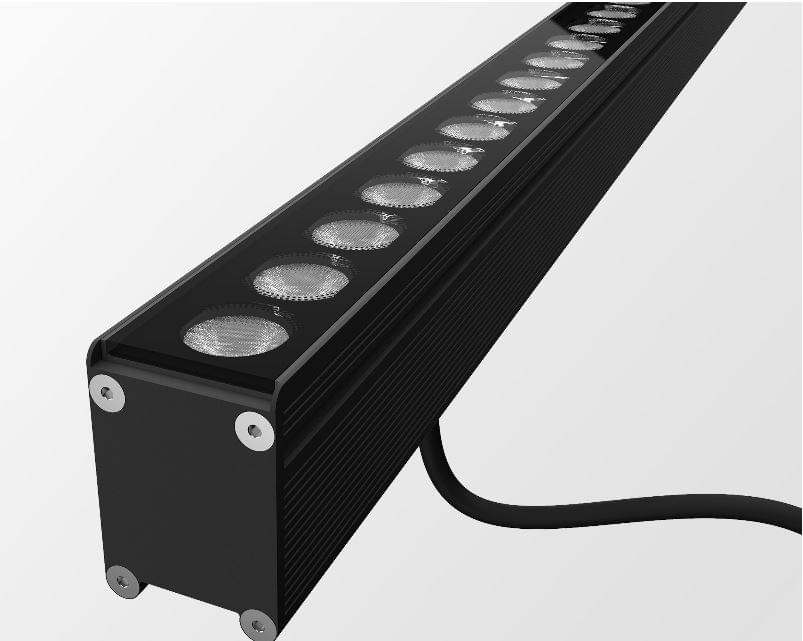

GVA Lighting STR9 W

High performance, high power, monochromatic, linear surface mount LED luminaire designed for exterior architectural lighting applications

  • Up to 6,600 delivered lumens/meter (2,000 lumens/foot)
  • Superior quality of white light with excellent LED to LED color consistency
  • Diffusing optical film creates uniform light output immediately adjacent to luminaire


Mechanical Details:

  • Compact size, only 47.48in (1206mm) length x 1.96in (50mm) width x 2.85in (72mm) height
  • Extruded aluminum body
  • 4mm, optically clear tempered glass lens (no yellowing over time)
  • IP66 rated with proprietary sealing process
  • Designed for 3G ANSI C136.31-2010 Vibration standard for Bridge and Overpass Applications
  • 5 pin snap-in input connector, IP68 rated
  • Integrated Class 2 LED drivers
  • Control: 0-10V dimming
  • Projected Lifetime: L70 > 150,000hrs @ ta=25°C (77°F)
  • Operating Temperatures: -40°C to +30°C (-40°F to 86°F)120V AC,

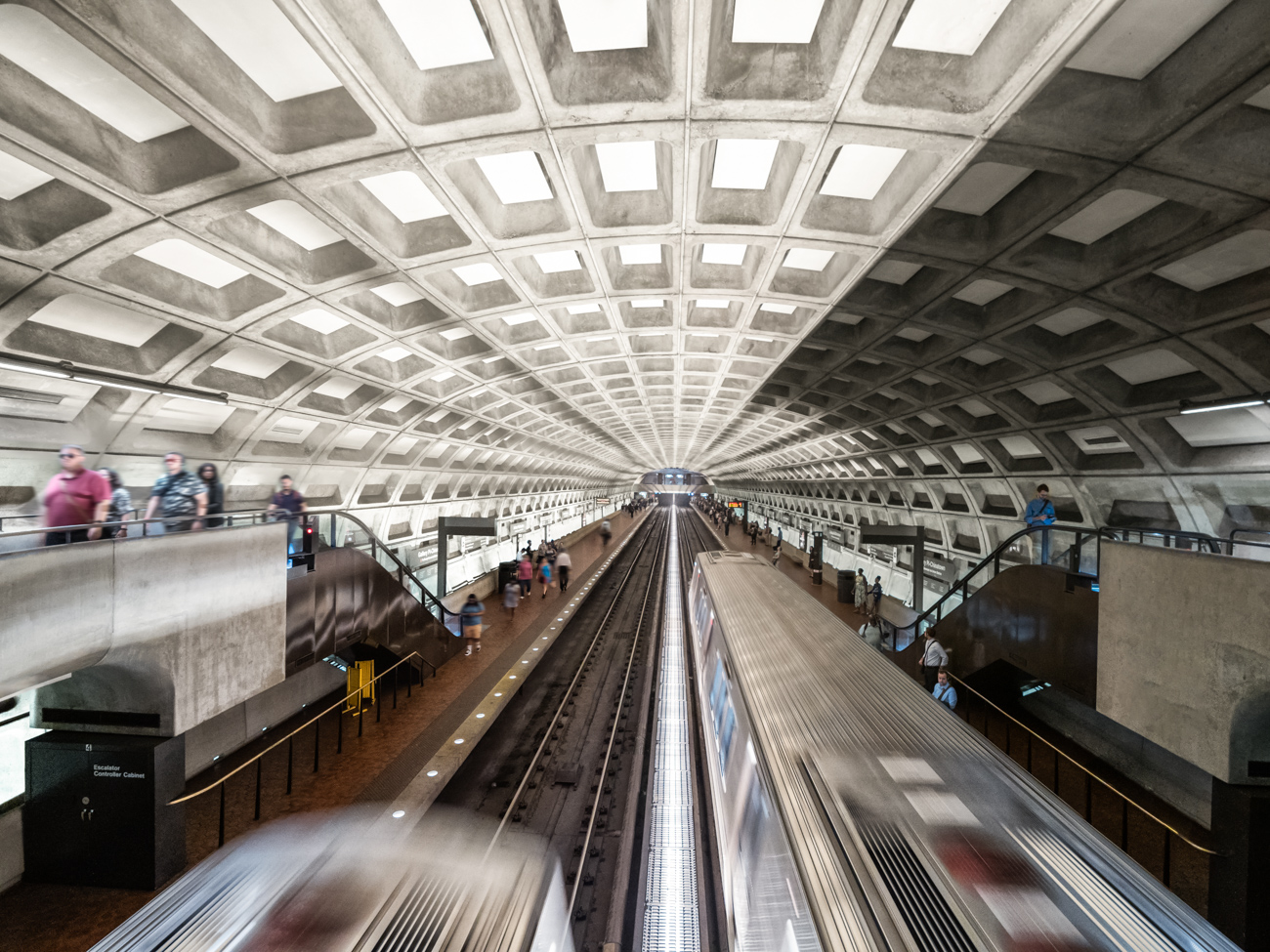

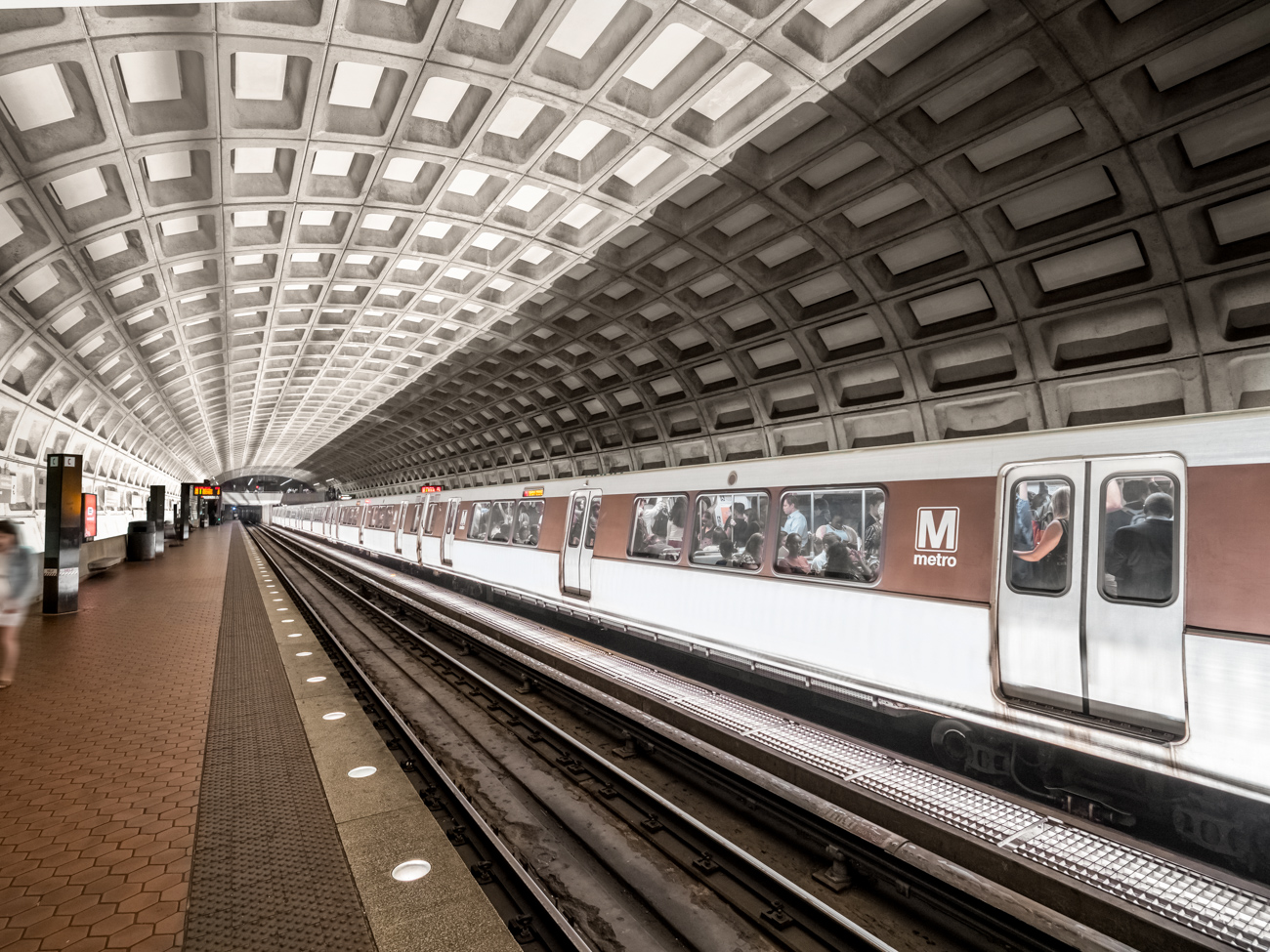

Photo 2 and 3:

The STR9-W is GVA’s custom solution for the large-scale WMATA Metro project. Washington’s WMATA Metro is one of the busiest metrorail system in the USA.
The industrial luminaire delivers an outstanding 2000 lm/ft (300mm) and meets the strict requirements for color consistency. The aluminum body is compact and aesthetically pleasing but extremely rugged, built and tested to withstand years of intense vibrations, suction created by passing trains, accumulation of magnetic break dust, and pressure-washing treatment.



See specifications for more information or click here
