hl-art-1220-rgbw (pdf)

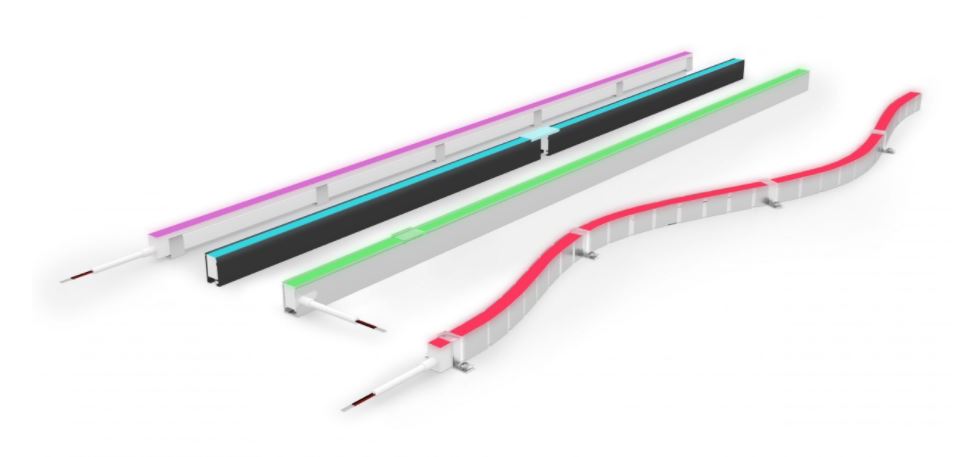

GVA lighting HL-ART-1220-RGBW

COLOR-CHANGING, SPECIFICATION-GRADE, DIRECT-VIEW LED SYSTEM FOR ARCHITECTURAL AND ARTISTIC APPLICATIONS
Compact, horizontal bending, customizable linear luminaires with versatile monochromatic LED selection

  • Electronics are encapsulated by a high-quality Dow silicone, using a fully automated co-extrusion technology
  • IP67 protection, superior heat management and resistance from chemicals and UV
  • Featuring GVA factory engineered aluminum profiles and mounting options, installable with a maximum horizontal bend radius of 240mm / 9.45” with applicable profile selection
  • Front, back, and side cable entry options available for different install options. Endless fixture length configurations allow for the ultimate freedom of design


SPECIFICATIONS

  • LUMEN OUTPUT/FT: 74lm/ft
  • LIGHT SOURCE: 5050 LEDs, RGBW
  • POWER:  4.6W/FT
  • INPUT VOLTAGE: 24VDC (23.5Vmin, 24.5Vmax)
  • SIZE (WxH): 12mm x 20mm / 0.47” x 0.79” (W x H)
  • BEND: Maximum horizontal bend radius of 240mm / 9.45” with applicable profile selection
  • LENGTH: Minimum length of 250mm, increments of 125mm up to 5,000mm
  • CONTROL: DMX512
  • PROJECTED LIFETIME: L80 >30,000hrs
  • ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
  • IEC CLASS: Class III LED Luminaire

See specification for more information or click here
