DYNAMIC WHITE, SPECIFICATION-GRADE, DIRECT-VIEW LED SYSTEM FOR ARCHITECTURAL AND ARTISTIC APPLICATIONS

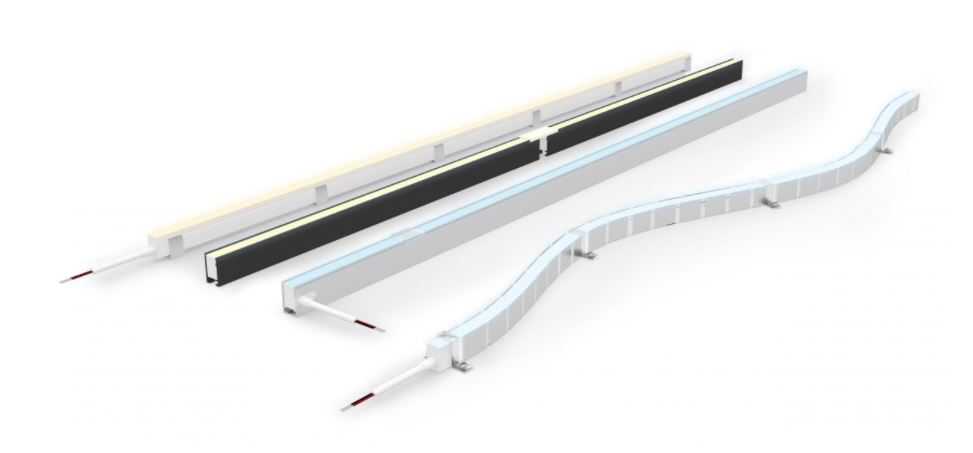

Compact, horizontal bending, customizable linear luminaires with versatile monochromatic LED selection

• Electronics are encapsulated by a high-quality Dow silicone, using a fully automated co-extrusion technology
• IP67 protection, superior heat management and resistance from chemicals and UV
• Featuring GVA factory engineered aluminum profiles and mounting options, installable with a maximum horizontal bend radius of 240mm / 9.45” with applicable profile selection
• Front, back, and side cable entry options available for different install options. Endless fixture length configurations allow for the ultimate freedom of design
• A premium selection of LEDs is used with 3-step micro-binning and CRI 80+ guaranteeing consistency and high quality of light

SPECIFICATIONS

• LUMEN OUTPUT/FT: 159lm/ft
• LIGHT SOURCE: 3014 LEDs, 3-step micro binning
• CRI: >80+
• POWER:  4.6W/FT
• INPUT VOLTAGE: 24VDC (23.5Vmin, 24.5Vmax)
• SIZE (WxH): 12mm x 20mm / 0.47” x 0.79” (W x H)
• BEND: Maximum horizontal bend radius of 240mm / 9.45” with applicable profile selection
• LENGTH: Mininmum length of 100mm, increments of 50mm up to 5,000mm
• CONTROL: DMX512
• PROJECTED LIFETIME: L70 B10 >54,000hrs
• ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
• IEC CLASS: Class III LED Luminaire

See specification for more information or click here
