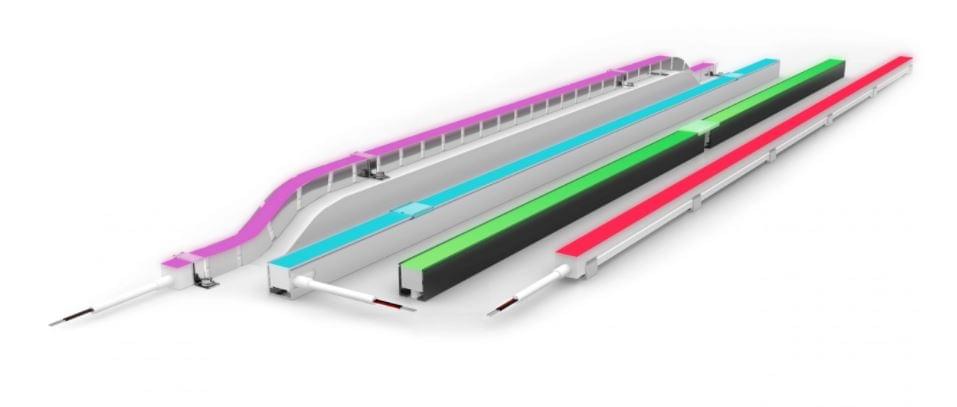

GVA lighting HL-ART-1615-RGB

  • COLOR-CHANGING, SPECIFICATION-GRADE, DIRECT-VIEW LED SYSTEM FOR ARCHITECTURAL AND ARTISTIC APPLICATIONS
    Compact, vertical bending, customizable linear luminaires with versatile monochromatic LED selection

  • Electronics are encapsulated by a high-quality Dow silicone, using a fully automated co-extrusion technology
  • IP67 protection, superior heat management and resistance from chemicals and UV
  • Featuring GVA factory engineered aluminum profiles and mounting options, installable with a maximum vertical bend radius of 240mm / 9.45” with applicable profile selection
  • Front, back, and side cable entry options available for different install options. Endless fixture length configurations allow for the ultimate freedom of design


SPECIFICATIONS

  • LUMEN OUTPUT/FT: 801lm/ft
  • LIGHT SOURCE: 4040LEDs, RGBW
  • POWER: 3.4W/ft
  • INPUT VOLTAGE: 24VDC (23.5Vmin, 24.5Vmax)
  • SIZE (WxH): 16mm x 15mm / 0.63” x 0.59” (W x H)
  • BEND: Maximum vertical bend radius of 240mm / 9.45” with applicable profile selection
  • LENGTH: Minimum length of 125mm, increments of 62.5mm up to 8,000mm
  • CONTROL: DMX512
  • PROJECTED LIFETIME: L80 >30,000hrs
  • ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
  • IEC CLASS: Class III LED Luminaire


See specification for more information or click here
