MONOCHROMATIC, SPECIFICATION-GRADE, DIRECT-VIEW LED SYSTEM FOR ARCHITECTURAL AND ARTISTIC APPLICATIONS

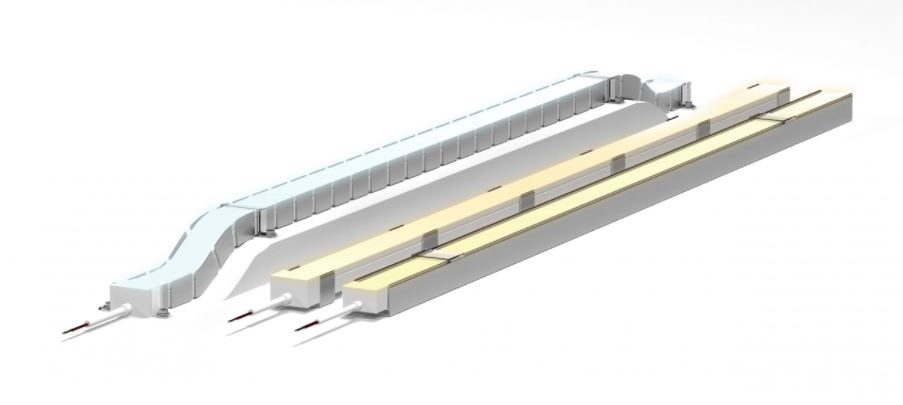

Compact, vertical bending, customizable linear luminaires with versatile monochromatic LED selection

• Electronics are encapsulated by a high-quality Dow silicone, using a fully automated co-extrusion technology
• IP67 protection, superior heat management and resistance from chemicals and UV
• Featuring GVA factory engineered aluminum profiles and mounting options, installable with a maximum vertical bend radius of 150mm / 5.91” with applicable profile selection
• A premium selection of LEDs is used with 3-step micro-binning and CRI 90+ guaranteeing consistency and high quality of light

SPECIFICATIONS

• LUMEN OUTPUT/FT(HIGH OUTPUT): 327lm/ft
• LIGHT SOURCE: 2835 LEDs, 3-step micro binning
• CRI: >90+
• POWER: 5.8W/FT
• INPUT VOLTAGE: 24VDC (23.5Vmin, 24.5Vmax)
• SIZE (WxH): 30mm x 20mm / 1.18” x 0.79” (W x H)
• BEND: Maximum vertical bend radius of 150mm / 5.91” with applicable profile selection
• LENGTH (Low Power): Minimum length of 100mm, increments of 50mm up to 5,000mm
• CONTROL: DALI or 0~10V
• PROJECTED LIFETIME: L70 B10 >54,000hrs
• ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
• IEC CLASS: Classification (III)

See specification for more information or click here
