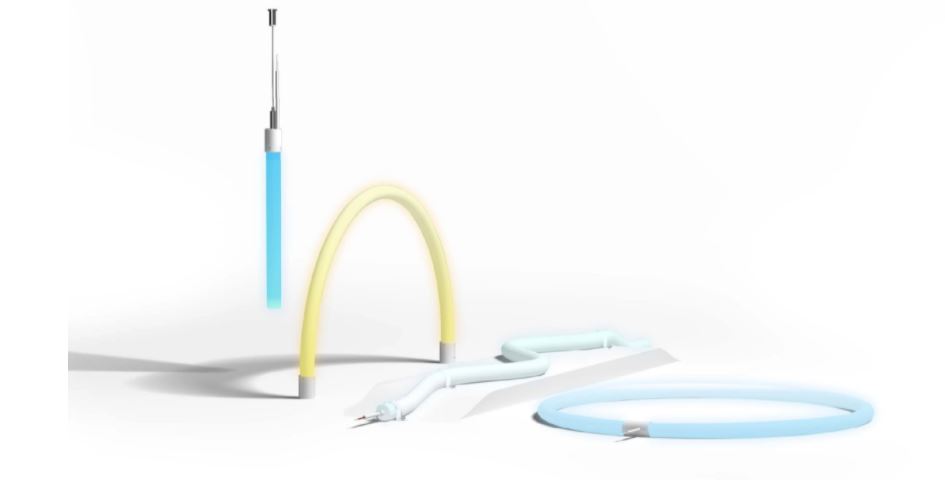

GVA lighting HL-ART-360-3D-DWT

DYNAMIC WHITE, SPECIFICATION-GRADE, DIRECT-VIEW LED SYSTEM FOR ARCHITECTURAL AND ARTISTIC APPLICATIONS
Compact, vertical or horizontal bending, customizable linear luminaires with versatile LED selection

  • Electronics are encapsulated by a high-quality Dow silicone, using a fully automated co-extrusion technology
  • IP65 protection, superior heat management and resistance from chemicals and UV
  • Featuring GVA factory engineered profiles and mounting options, installable with a maximum vertical or horizontal bend radius of 100mm / 3.93″ with applicable profile selection
  • A premium selection of LEDs is used with 3-step micro-binning and CRI 90+ guaranteeing consistency and high quality of light


SPECIFICATIONS

  • LUMEN OUTPUT/FT(HIGH OUTPUT): 161lm/ft
  • LIGHT SOURCE: 2835 LEDs, 3-step micro binning
  • CRI: >90+
  • POWER: 1.5W/FT, 3.1W/FT
  • INPUT VOLTAGE: 24VDC (23.5Vmin, 24.5Vmax)
  • SIZE : 25mm diameter
  • BEND: Maximum vertical bend radius of 100mm / 3.93″ with applicable profile selection
  • LENGTH (Low Power): Minimum length of 100mm, increments of 50mm up to 5,000mm
  • CONTROL: DMX512
  • PROJECTED LIFETIME: L70 B10 >54,000hrs
  • ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
  • IEC CLASS: Classification (III)


See specification for more information or click here
