MONOCHROMATIC, SPECIFICATION-GRADE, DIRECT-VIEW LED SYSTEM FOR ARCHITECTURAL AND ARTISTIC APPLICATIONS

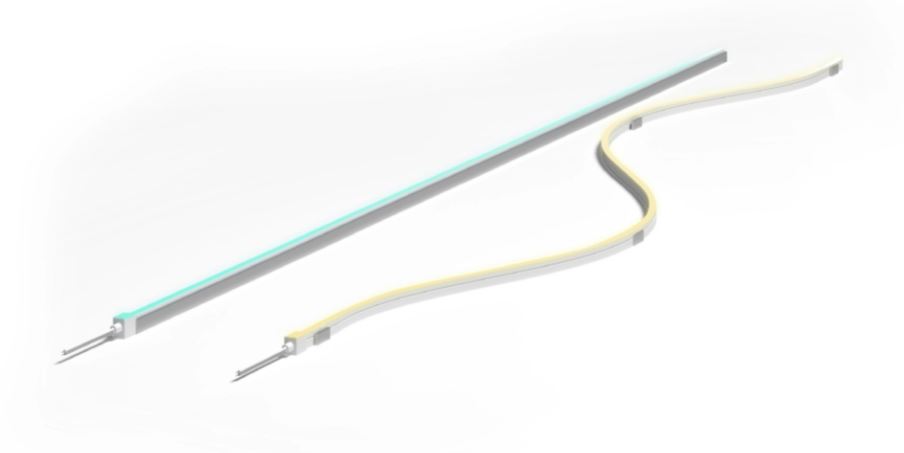

Compact, horizontal bending, customizable linear luminaires with versatile monochromatic LED selection

• Electronics are encapsulated by a high-quality Dow silicone, using a fully automated co-extrusion technology
• IP67 protection, superior heat management and resistance from chemicals and UV
• Featuring GVA factory engineered aluminum profiles and mounting options, installable with a maximum horizontal bend radius of 15mm / 0.59” with applicable profile selection
• A premium selection of LEDs is used with 3-step micro-binning and CRI 90+ guaranteeing consistency and high quality of light

SPECIFICATIONS

• LUMEN OUTPUT/FT: 78lm/ft
• LIGHT SOURCE: 2216 LEDs, 3-step micro binning
• CRI: >90+
• POWER: 1.8W/FT(6W/M)
• INPUT VOLTAGE: 24VDC (23.5Vmin, 24.5Vmax)
• SIZE (WxH): 04mm x  08mm / 0.16” x 0.31” (W x H)
• BEND: Maximum horizontal bend radius of 15mm / 0.59” with applicable profile selection
• LENGTH (Low Power): Minimum length of 100mm, increments of 100mm up to 5,000mm
• CONTROL: DALI or 0-10V dimmable
• PROJECTED LIFETIME: L70B80 >5,000 hours
• ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
• IEC CLASS: Classification (III)

See specification for more information or click here
