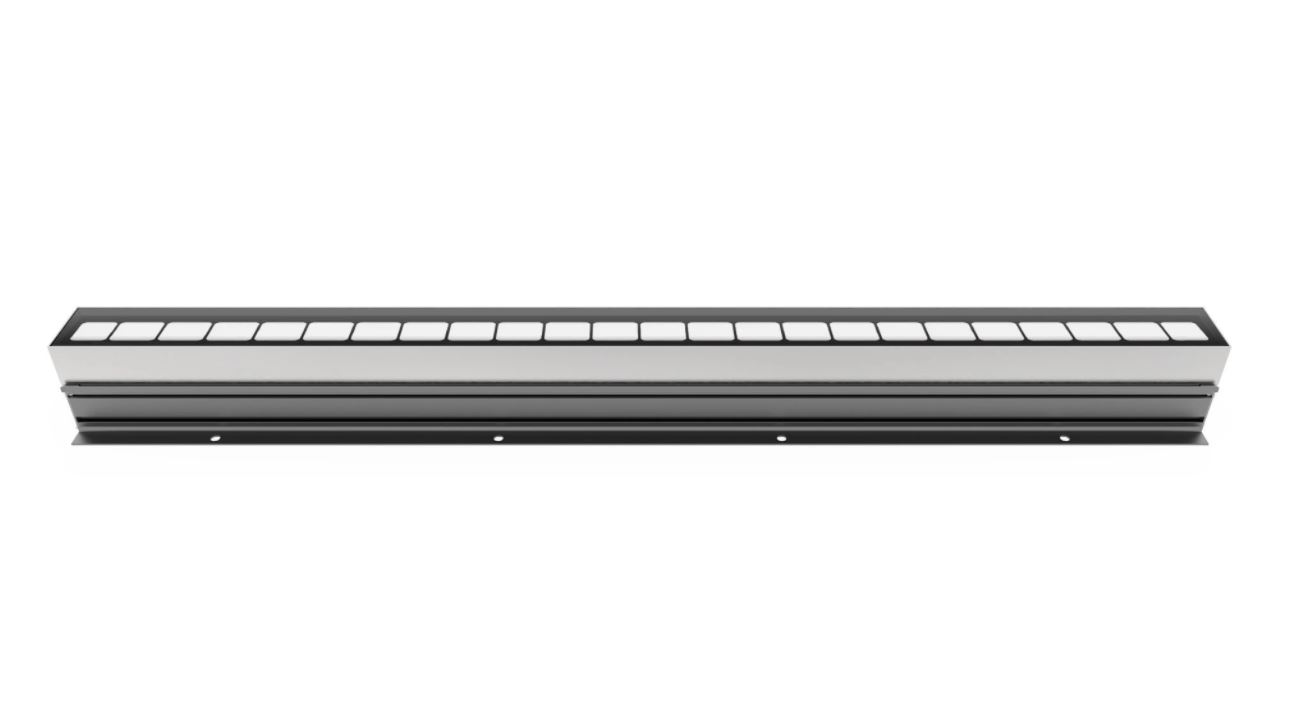

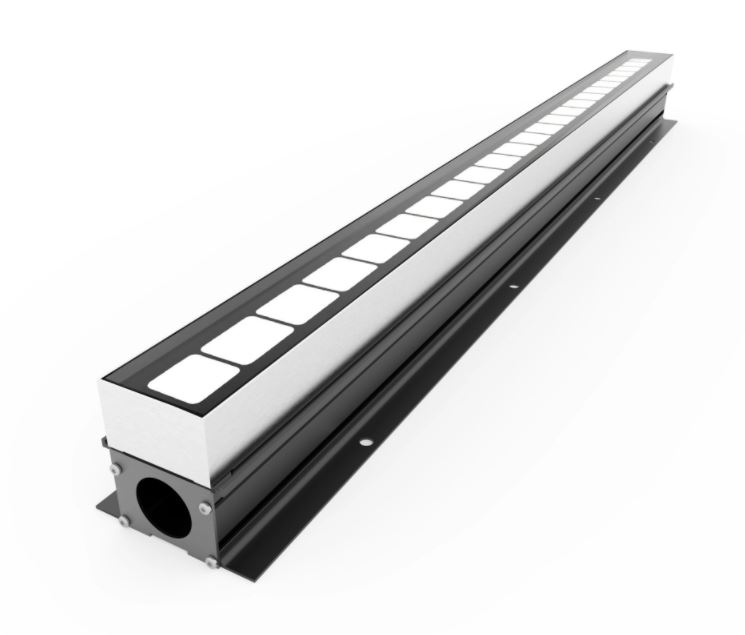

MONOCHROMATIC LINEAR WALL WASHING AND GRAZING INGROUND LED LUMINAIRE
An extremely reliable inground luminaire with a full glass top and an outstanding glare control system.

Key features

* Up to 3755 lumens/meter (1144 lumens/foot)
* Superior quality of white light: excellent LED to LED color consistency
* Diffusing optical film creates uniform light output immediately adjacent to luminaire Mechanical Details:

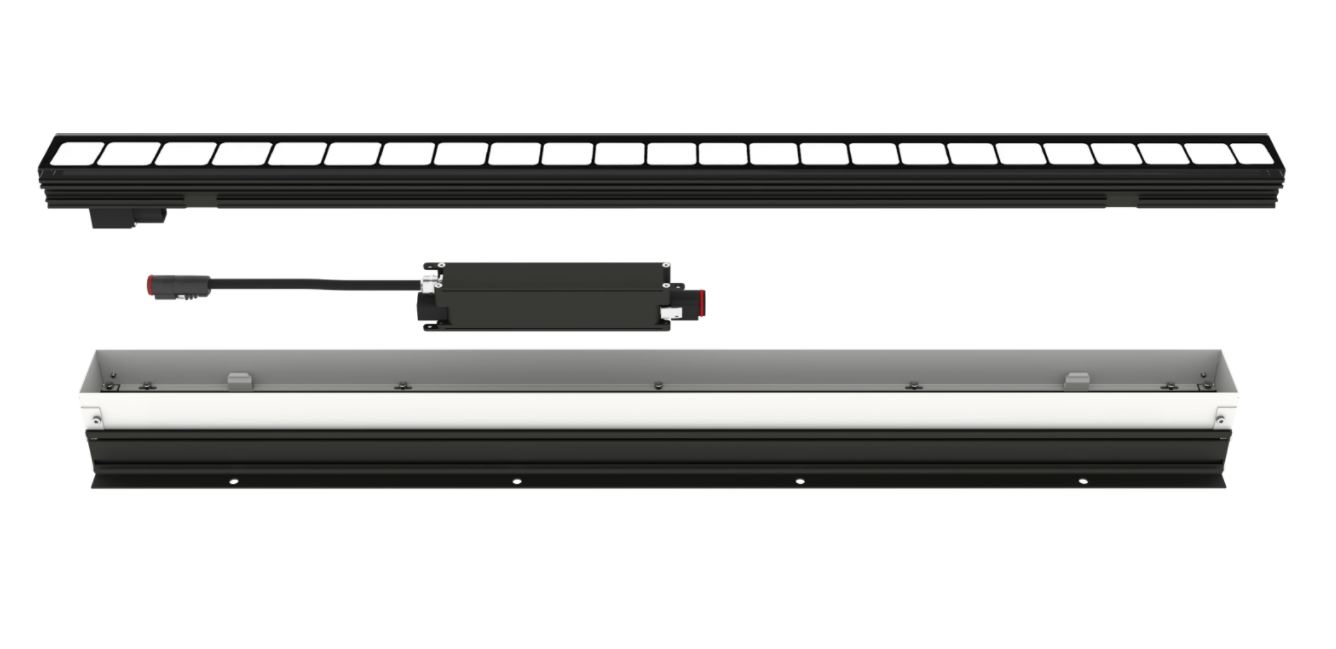

* Trimless inground luminaire, stainless steel top frame and aluminum body for improved thermal performance
* Compact size, 77 mm (3.03 in) wide, 108mm (4.2 in) high
* IP68 rated luminaire with proprietary sealing process and solid extruded, anodized aluminum UNIBODY™ design
* Electronic micro leak detection test performed for each hermetically sealed fixture
* Meets 3G ANSI C136.31-2010 Vibration Standard for Bridge and Overpass Applications
* IK10 with 10mm optically clear tempered glass lens (no yellowing over time)
* Through wiring via snap-in and lock connectors

Specifications

* DELIVERED LUMENS: 3755lm/m
* INPUT VOLTAGE: 48VDC, AC 120 or 277 VAC and 220-240 VAC
* LENGTH: 600mm (2ft), 900mm (3ft), 1200mm (4ft) and 1500mm (5ft)
* CONTROL:DMX, 0-10V and DMX
* ENVIRONMENT: Dry, Damp or Wet Locations

See specification for more information or click here
