DYNAMIC WHITE LINEAR WALL WASHING AND GRAZING LED LIGHTING

Key features

• Up to 3514 lumens/meter (1071 lumens/foot)
• 3 Voltage Options: AC Line voltage, ELV 48VDC, INFINITY® 380VDC
• Any color temperature from 2200K to 6000K using a 4 in 1 package (2200K, 3000K, 4000K, 6000K)
• COLOR-AMP® technology allows up to three times higher light output in specific color temperatures
• Outstanding color temperature mixing (no striations or colour separation)
•  Homogenous light output immediately adjacent to luminaire
•  LED pitch is maintained within and between luminaires (no dark spots between fixtures)
• Compact size, only 63 mm (2.5 in) high x 71 mm (2.8 in) wide
• IP66 rated with proprietary sealing process and solid extruded, anodized aluminum UNIBODY™ design
•  Electronic micro leak detection test performed for each hermetically sealed fixture
• Meets 3G ANSI C136.31-2010 Vibration Standard for Bridge and Overpass Applications
•  Optically clear tempered glass lens (no yellowing over time)
• Guaranteed long life time and high performance, no electrolytic capacitors in all DC designs

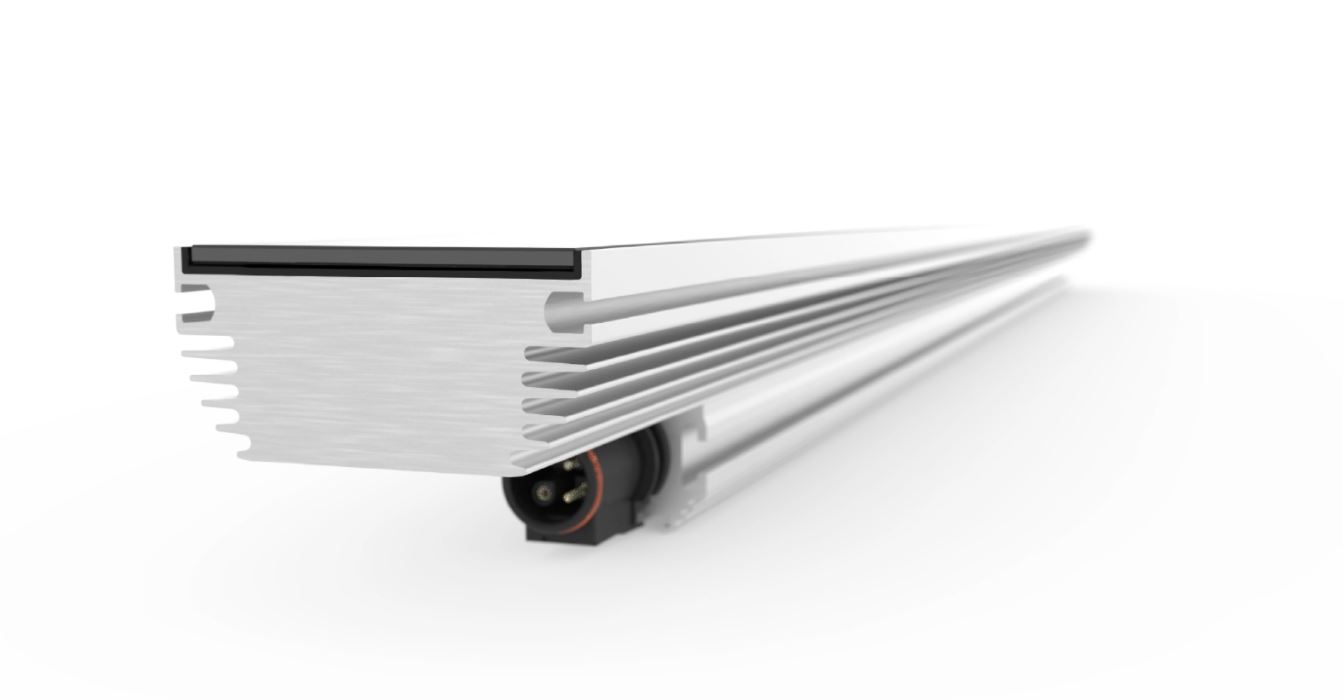

• Through wiring for end-to-end connection via snap-in and lock connectors
• IK06 rated fixture body construction, IK10 accessories available upon request

Specifications

• DELIVERED LUMENS: 3,514 lm/m (1,071 lm/ft)
• LIGHT SOURCE: 4 in 1 High Power package – 2200K, 3000K, 4000K, 6000K
• POWER: 10W, 15W or 20W/ 300mm (1ft)
• INPUT VOLTAGE: ELV (48VDC), AC (120VAC, 277VAC, or 220~240VAC), or INF (380VDC)
• SIZE (WxH): 71 x 63 mm (2.8 x 2.5 in)
• LENGTH: 300, 600, 900, 1200, or 1500 mm (1, 2, 3, 4, or 5 ft)
• WEIGHT: 1.0 kg/ 300 mm (2.2 lbs/ 1ft)
• ADDRESSABILITY: 300 mm (1 ft)
• CONTROL: 4 channel DMX control through GVA’s power-data equipment
• PROJECTED LIFETIME: L70 > 65,000hrs @ ta = 50°C (122°F)
• OPERATING TEMPERATURE: -40°C to +50°C (-40°F to 122°F)
• ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
• IEC CLASS: Class 1 LED Luminaire



See specification for more information or click here
