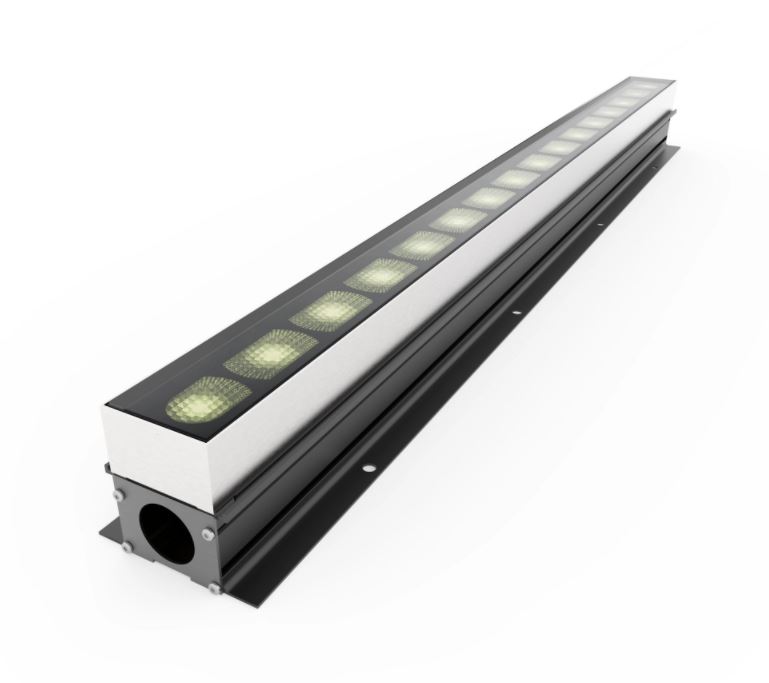

An extremely reliable inground luminaire with a full glass top and an outstanding glare control system.

Key features

• Up to 3514 lumens/meter (1071 lumens/foot)
• Any color temperature from 2200K to 6000K using a 4 in 1 package (2200K, 3000K, 4000K, 6000K)
• COLOR-AMP® technology allows up to three times higher light output in specific colors
• Outstanding color mixing (no striations or colour separation)
• Homogenous light output immediately adjacent to luminaire

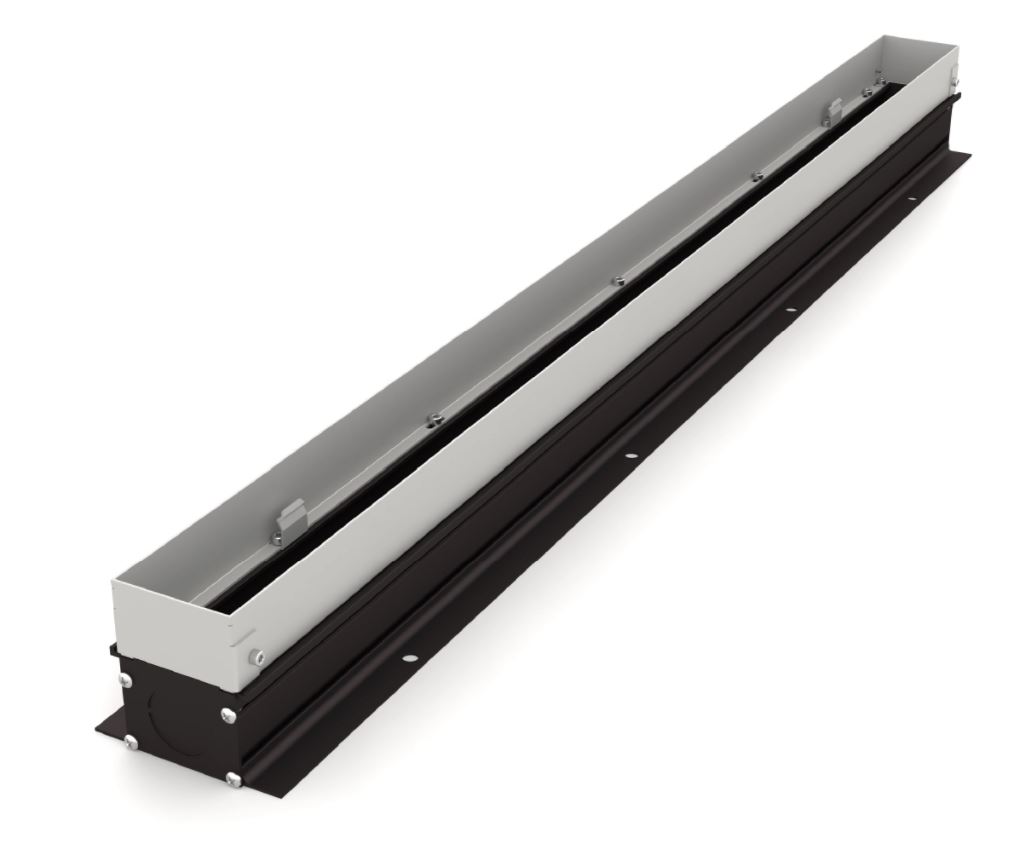

•  Trimless inground luminaire, stainless steel top frame and aluminum body for improved thermal performance
• Compact size, 77 mm (3.03 in) wide, 108mm (4.2 in) high
• IP68 rated luminaire with proprietary sealing process and solid extruded, anodized aluminum UNIBODY™ design
• Electronic micro leak detection test performed for each hermetically sealed fixture
• Meets 3G ANSI C136.31-2010 Vibration Standard for Bridge and Overpass Applications
• IK10 with 10mm optically clear tempered glass lens (no yellowing over time)
• Through wiring via snap-in and lock connectors

Specifications

• DELIVERED LUMENS: 3514lm/m
• INPUT VOLTAGE: 48VDC, AC 120 or 277 VAC and 220-240 VAC
• LENGTH: 600mm (2ft), 900mm (3ft), 1200mm (4ft) and 1500mm (5ft)
• CONTROL: DMX
• ENVIRONMENT: Dry, Damp or Wet Locations

See specification for more information or click here
