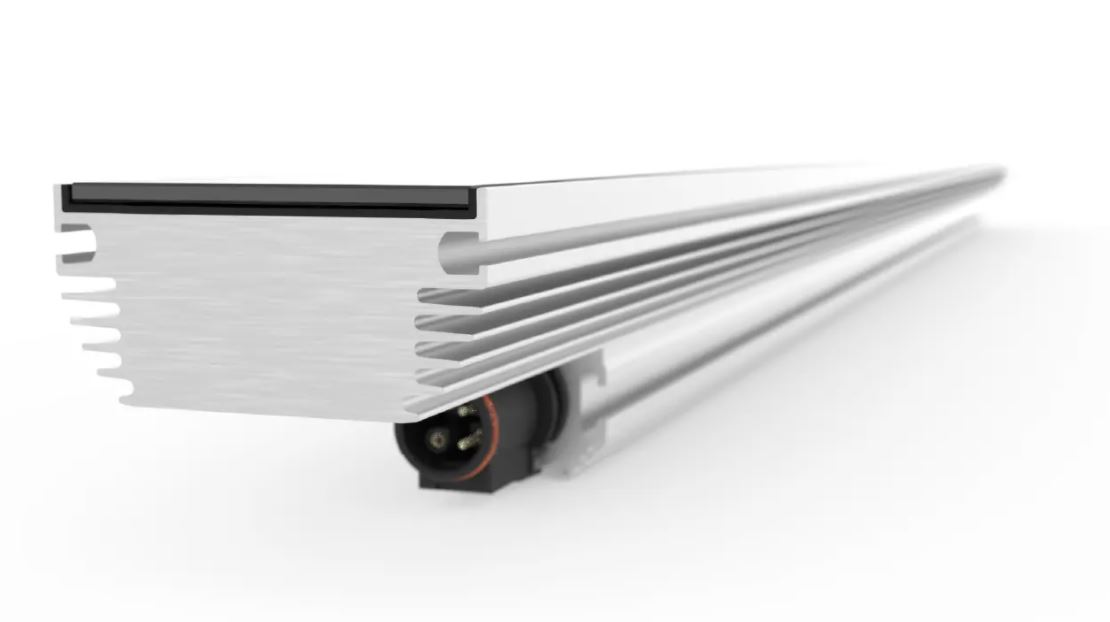

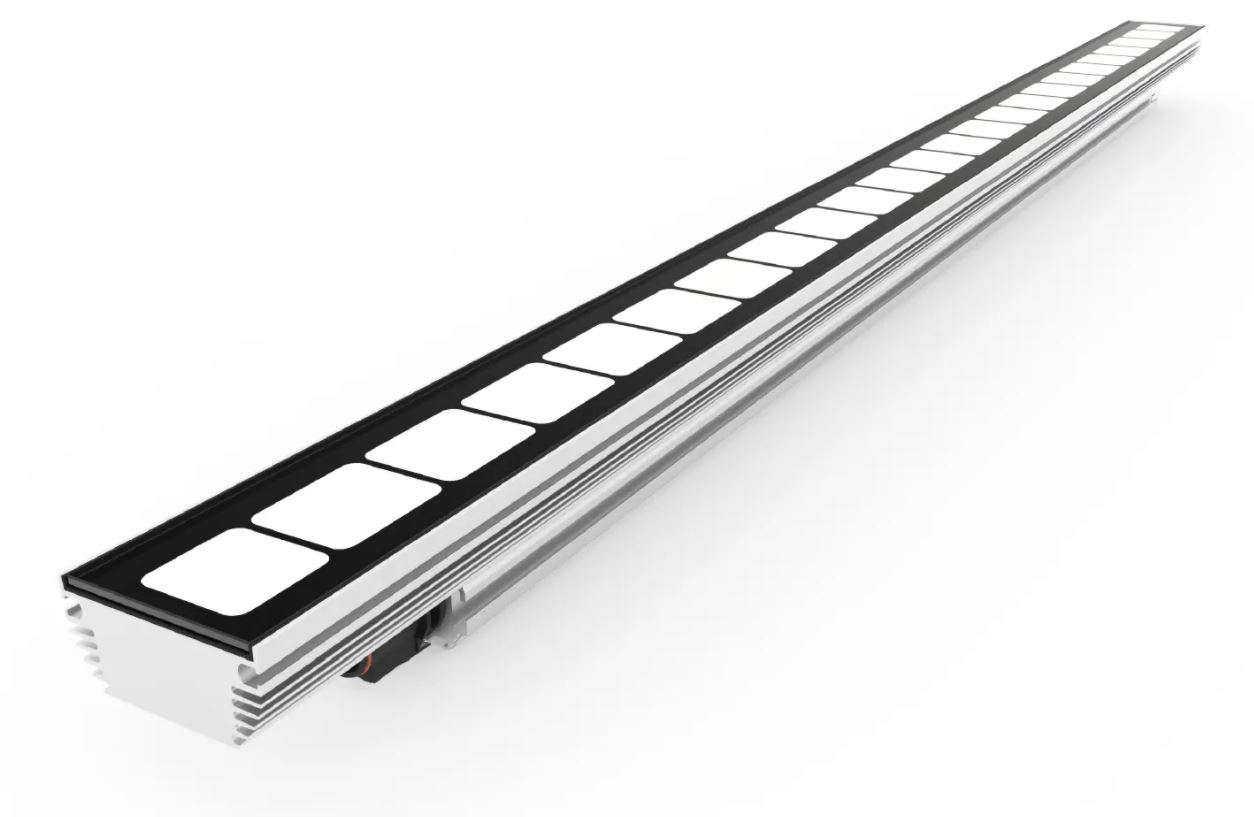

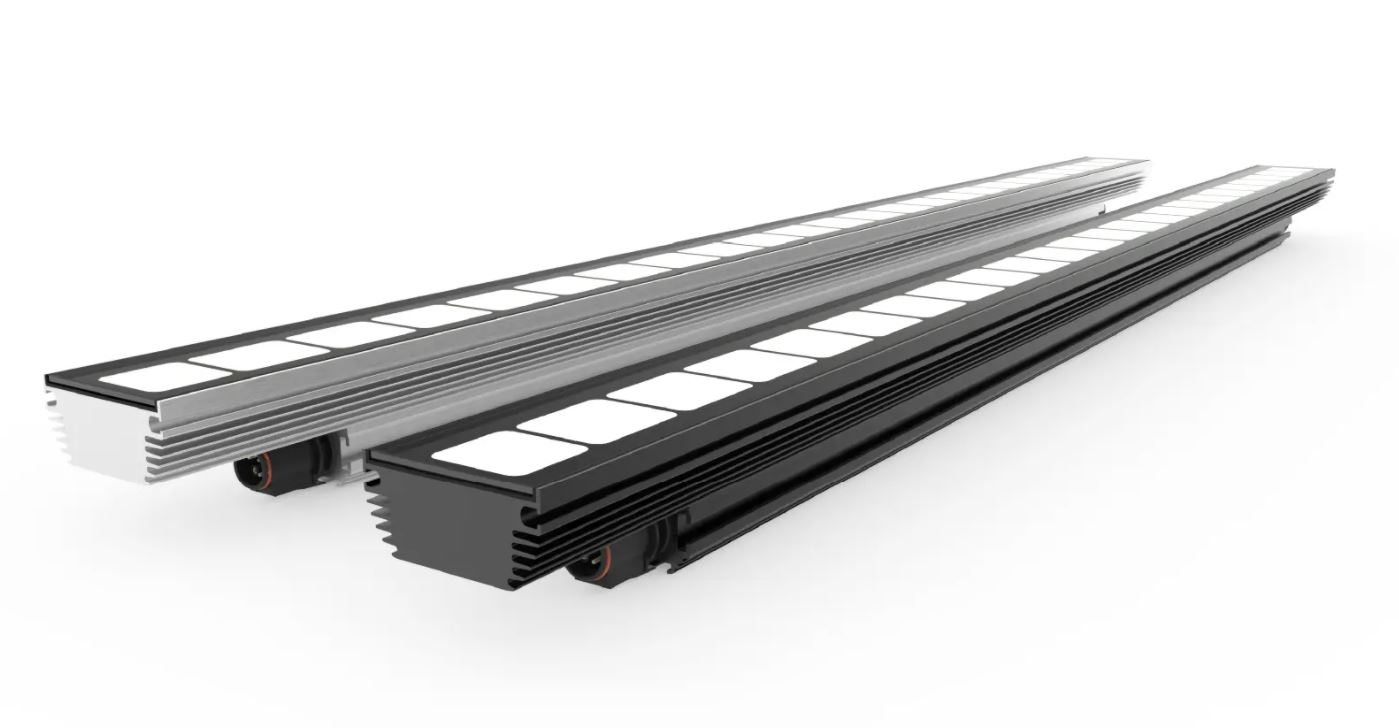

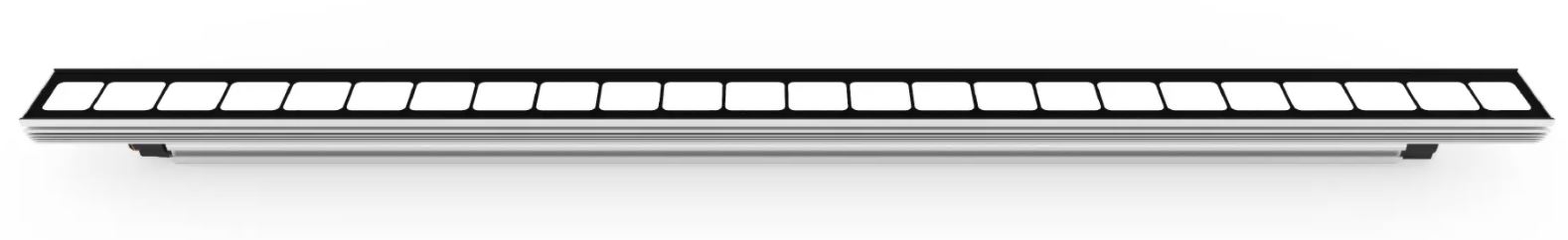

GVA STR9 GEN3 Mono

Monochromatic linear wall washing and grazing exterior led lighting

  • Up to 3,755 Delivered Lumens /m (1,144 lm/ft)
  • 3 Voltage Options: AC Line voltage, ELV 48VDC, INFINITY® 380VDC
  • LED Pitch Maintained Within and Between Luminaires
  • Optically Clear Tempered Glass
  • Versatile Mounting Slot for Array of Mounting Options
  • 300 mm (1 ft) Addressability
  • Compact and Lightweight
  • UNIBODY™ Technology for industry-leading proprietary sealing against water ingress
  • INFINITY® Technology enables exceptionally long lighting circuits
  • Diffusing film creates uniform light adjacent to the luminaire
  • Excellent LED to LED color consistency
  • Through-wiring for end-to-end connection and plug-and-play with FL Series


Specifications

  • Delivered lumens: 3,755 lm/m (1,144 lm/ft)
  • Light source: 6 x high power leds /300 mm (1 ft)
  • CRI: >80
  • Power: 3w, 5w, 10w, or 15w /300 mm (1 ft)
  • Input voltage: elv (48vdc), ac (120vac, 277vac, or 220~240vac), or inf (380vdc)
  • Size (wxh): 71 x 63 mm (2.8 x 2.5 in)
  • Length: 300, 600, 900, 1200, or 1500 mm (1, 2, 3, 4, or 5 ft)
  • Weight: 1.0 kg/ 300 mm (2.2 lbs/ 1ft)
  • Addressability: 300 mm (1 ft)
  • Control: dmx, dali or 0~10v
  • Projected lifetime: l70 > 100,000hrs @ ta = 25°c (77°f)
  • Operating temperature: -40°c to +50°c (-40°f to +122°f)
  • Environment: dry, damp or wet locations, 0-100% humidity
  • Iec class: class 1 led luminaire


See specification for more information or click here
